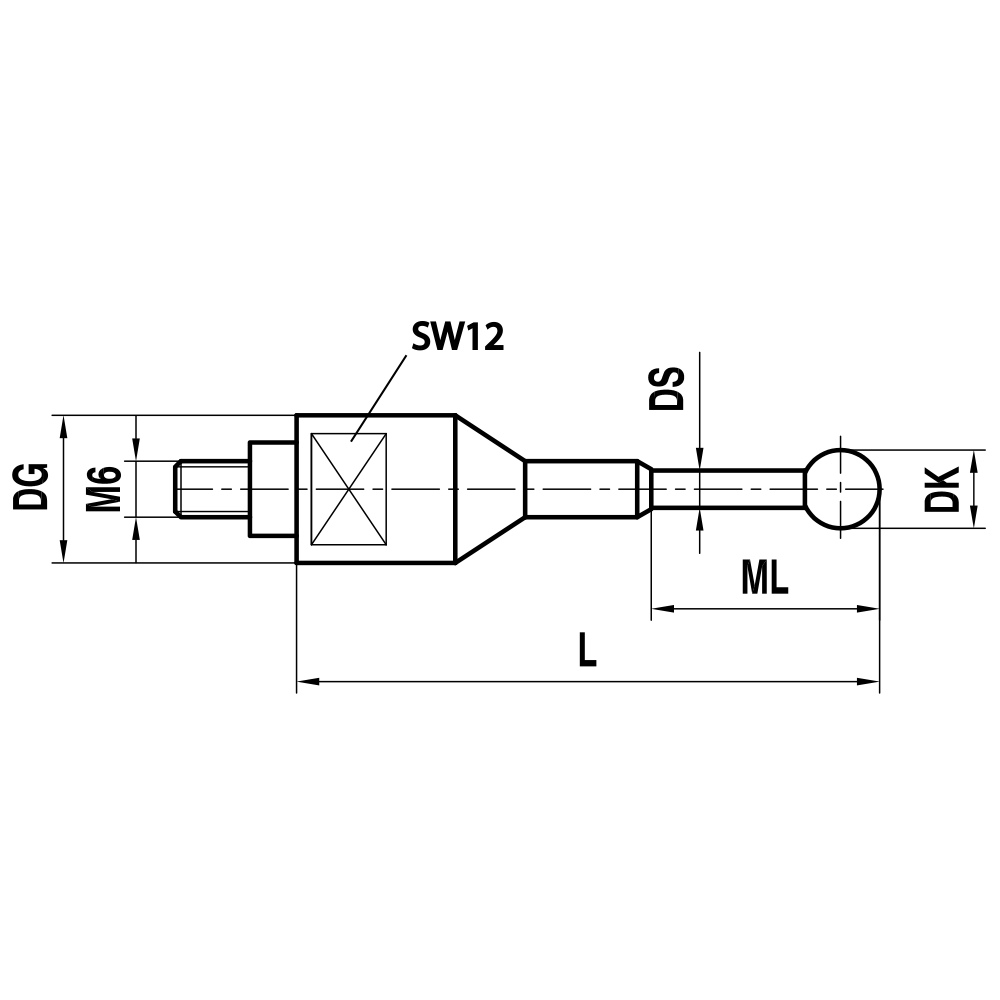

M6 Straight Stylus; DK 3.0 mm; L 49.0 mm
ITP P/N:
THM6Z3016049
11
M6 Straight Stylus; DK 3.0 mm; L 49.0 mm
ITP P/N:
THM6Z3016049
Straight Stylus; base: stainless steel; stem: carbide; ball: ruby
Straight stylus with M6 thread, specially designed for hand-held measuring systems.
The tungsten carbide stem is extremely rigid and allows a wide range of dimensions.
The zirconium oxide balls are …
Straight stylus with M6 thread, specially designed for hand-held measuring systems.
The tungsten carbide stem is extremely rigid and allows a wide range of dimensions.
The zirconium oxide balls are extremely hard and wear resistant.
Other sizes can be requested via the configurator or by e-mail.
| Thread size: | M6 |
|---|---|
| DK: | 3.0 |
| L: | 49.0 |
| DG: | 16.0 |
| ML: | 11.0 |
| DS: | 2.0 |
| customFields.itp_product_attributes_compatible_with_cnc: | no |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | zirconium oxide |
| Weight: | 37.5 |
| Compatible with: | Faro |
