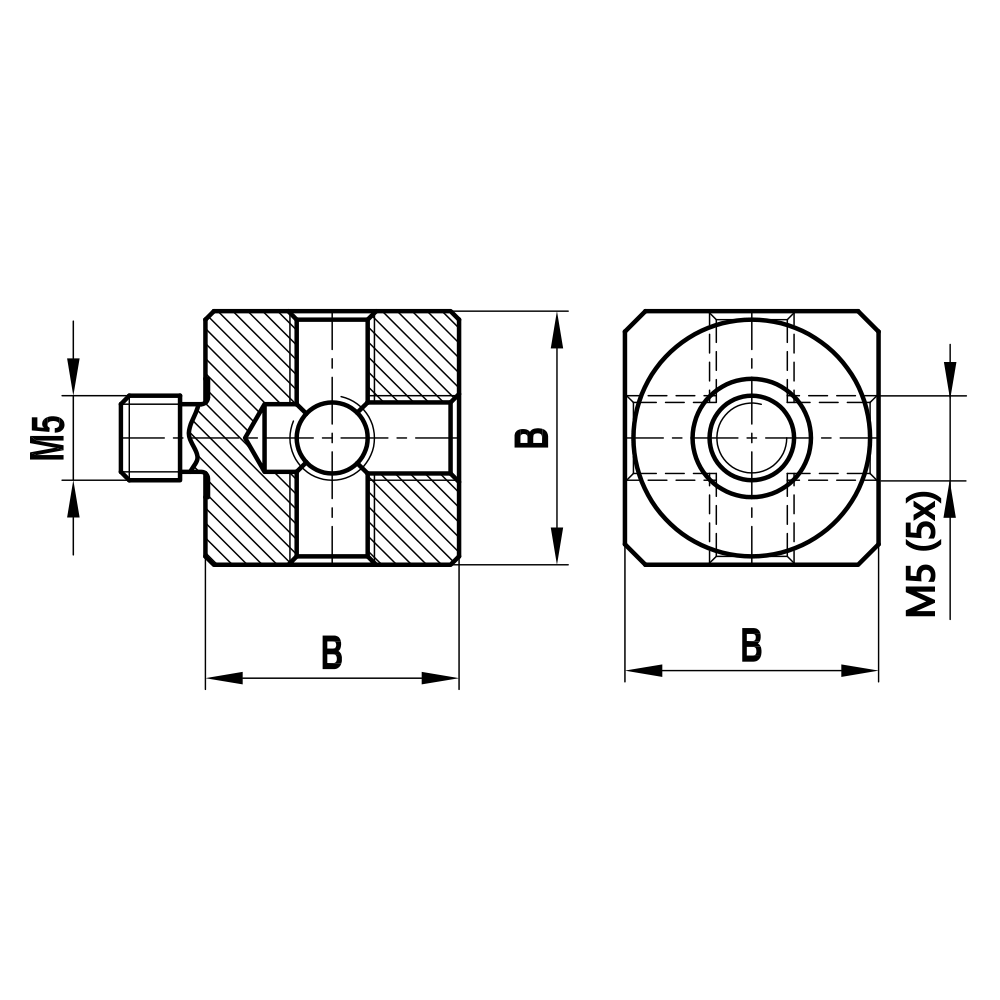

M5 Cube titanium 5-way; B 20.0 mm
ITP P/N:
WTM5L0020000
11
M5 Cube titanium 5-way; B 20.0 mm
ITP P/N:
WTM5L0020000
Adaptors / Holders; base: titanium
Cubes are important components in metrology that enable flexible and accurate styli positioning. They are particularly useful for building L-shaped and multi-arm styli, which have a wide range of …
Cubes are important components in metrology that enable flexible and accurate styli positioning. They are particularly useful for building L-shaped and multi-arm styli, which have a wide range of applications in various measurement configurations. The ability to screw or clamp styli provides additional adaptability to specific requirements.
| Thread size: | M5 |
|---|---|
| B: | 20.0 |
| customFields.itp_product_attributes_compatible_with_cnc: | no |
| Base Material: | titanium |
| Weight: | 29.7 |
| Name | Filename |
|---|---|
| CAD data | WTM5L0020000.stp |
