M4 Breaking point piece; L 15.2 mm
ITP P/N:
BIM400007015
11
M4 Breaking point piece; L 15.2 mm
ITP P/N:
BIM400007015
Accessories; base: stainless steel
Breaking Point Pieces are designed to break when the allowable override forces are exceeded, preventing damage to the stylus.

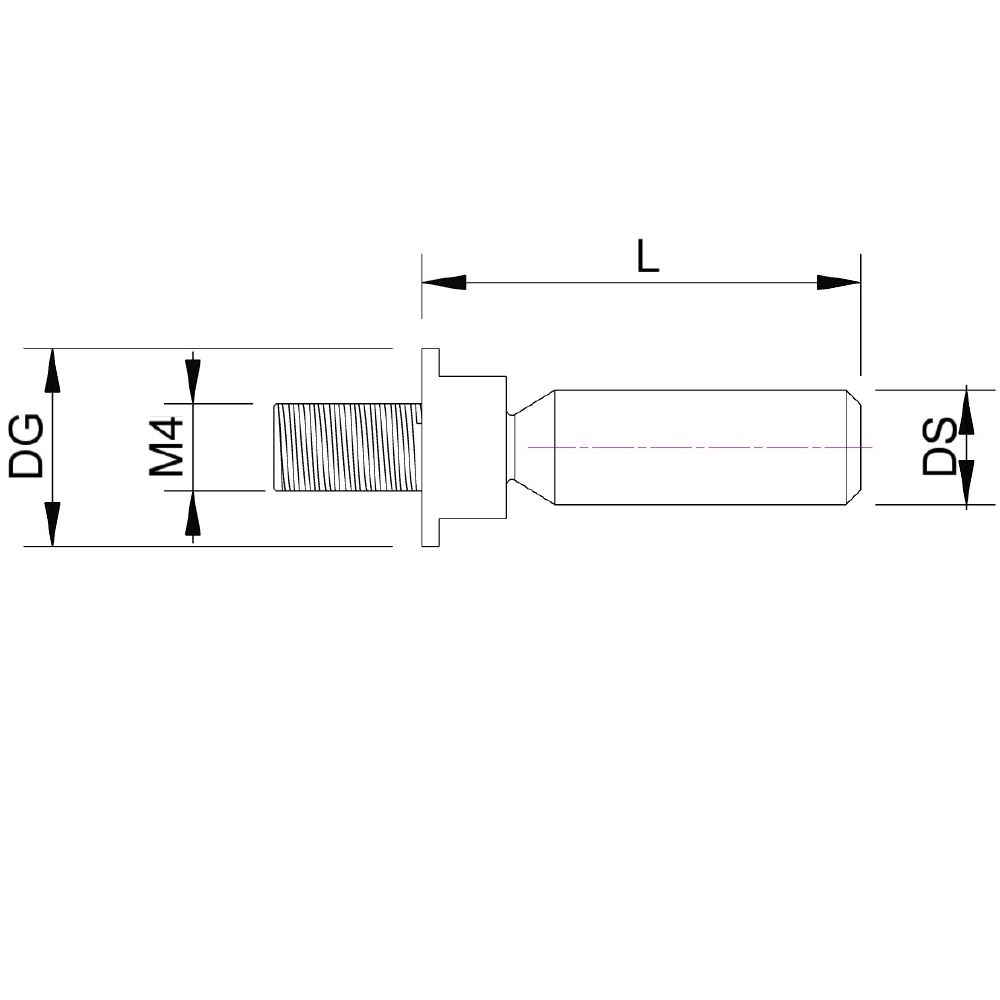

| Thread size: | M4 |
|---|---|
| L: | 15.2 |
| DG: | 7.0 |
| DS: | 4.0 |
| customFields.itp_product_attributes_compatible_with_cnc: | no |
| Base Material: | stainless steel |
| Weight: | 2.3 |
| Compatible with: | Renishaw |
| Renishaw-No.: | A-5004-7443 |
| Name | Filename |
|---|---|
| CAD data | BIM400007015.stp |
